Hydraulic Press Cylinder

Jiangsu Hengcai Hydraulic Mechanical Co., Ltd. is a Hydraulic Press Cylinder manufacturer and source factory in Jianhu County, Jiangsu Province, China. Since 1988 we have designed and produced hydraulic cylinders for OEM machines and replacement applications, including a press cylinder line built for high-speed forging machinery, heavy forming presses and metalworking equipment. The standard envelope covers bores from 100 to 600 mm, working pressures from 16 to 30 MPa and push force up to 8500 kN, with structural features intended for impact loads and side forces that ordinary industrial cylinders cannot carry reliably.

Application Fit and Press Duty

Forging and press operations create high cycle rates, high impact load and off-axis loading during die contact. These conditions test the fatigue strength of the cylinder body, seal life and the guiding support mechanism. The Hydraulic Press Cylinder is therefore used in hydraulic presses, stamping and forming lines, extrusion press tooling, bending machines and heavy machine tools. With pull force up to 6360 kN, a matched configuration can cover pressing and drawing or high-force return duty from a single cylinder.

• Punched, deep-drawn, bent and die-spotting applications subject to high side load
• Production presses where cycling speed accelerates seal and guide wear
• Equipment operating in plant environments from -40°C to 100°C
• Machines using 16-30 MPa press hydraulics with force beyond standard tie-rod cylinders

Hydraulic Press Cylinder Range and Parameters

Structural Features That Protect Press Duty

Press cylinder bodies are made from high-quality steel forgings rather than less robust barrel constructions, giving sufficient strength and stiffness under repeated impact. We apply a special guide support design so the cylinder can withstand large side loads, and the plunger guide uses copper alloy with good wear resistance. Plunger surfaces are quenched and chromium-plated to improve surface hardness, corrosion resistance and resistance to abrasive contamination.

• Forged steel body construction for fatigue resistance in high-speed press cycles
• Special guide support system maintains alignment under off-axis force
• Copper alloy guide carries a defined side load without galling
• Quenched and chrome-plated plunger surface improves hardness and corrosion protection
• Well-established seal brands used to guarantee sealing performance over a long service life

Configuration Options and Machine Interface

We configure the press cylinder around the press frame and hydraulic system rather than offering only fixed dimensions. The same base design can be produced as single-acting plunger, double-acting or differential arrangement, and the mounting structure can be flange, foot, spherical or clevis as required by the press architecture. Port positions and connection sizes are defined by the manifold and line routing.

• Stroke-end cushioning and buffer design for high approach and return speeds
• Linear position transducer, proximity switches or limit detection integrated into the cylinder
• Seal material matched to mineral oil, synthetic fluid or fire-resistant hydraulic fluid
• Corrosion-resistant plating and paint systems for hot, humid press shops
• Custom bore, rod, stroke and pressure combinations applied during design review

Manufacturing, Quality Control and Certifications

We are the source factory, not a trading company. The plant in Jianhu covers 130000 square meters and employs more than 200 people; the company is recognized as a national high-tech enterprise and Jiangsu Province model enterprise on management. Our production system includes 22 manufacturing processes and 109 processing capabilities, with a self-made parts rate of 70%. Core processes such as welding, heat treatment, electroplating and spraying are kept in-house so quality remains under our control.

• 2P-2F durability test bench plus reciprocating and buffer performance test bench
• Physical-chemical and metallographic laboratories for material and dimensional verification
• PLM and SAP systems for design, production and quality data management
• ISO9001, ISO14001 and CE certificates
• Annual output exceeding 80,000 hydraulic cylinders for different order volumes

Installation, Commissioning and Spares

Each cylinder is prepared for installation with machining accuracy verified before dispatch. During project handoff we provide installation and commissioning guidance and make operator and maintenance training available. All cylinders are warranted for one year against defects in material and workmanship under normal use; reported quality issues receive our response within 24 hours and a detailed diagnosis or action plan within 3-5 days.

• Installation and commissioning guidance for press builders and end users
• One-year warranty with replacement or next-order discount for warranty quality issues
• Long-term supply of seals, metal parts, pipe joints and rubber components
• Service and maintenance documentation retained for each produced cylinder

Information We Use to Configure Your Solution

We prepare a hydraulic press cylinder proposal from operating data, not only a bore and stroke request. Send the press type, hydraulic system specifications and mounting envelope, and our engineers size the body, guide system and seal package for the actual duty.

• Press type, cycle rate and duty profile
• Required push and pull forces and working pressure
• Bore, rod and stroke envelope or structural mounting restriction
• Approach speed, return speed and stroke-end cushioning requirements
• Mounting style, port position and connection size
• Hydraulic fluid type and system filtration level
• Operating temperature and ambient environment
• Feedback requirement: limit switches, transducer or proportional control
• Fatigue or acceptance test specification to be applied
• Export packing and delivery destination

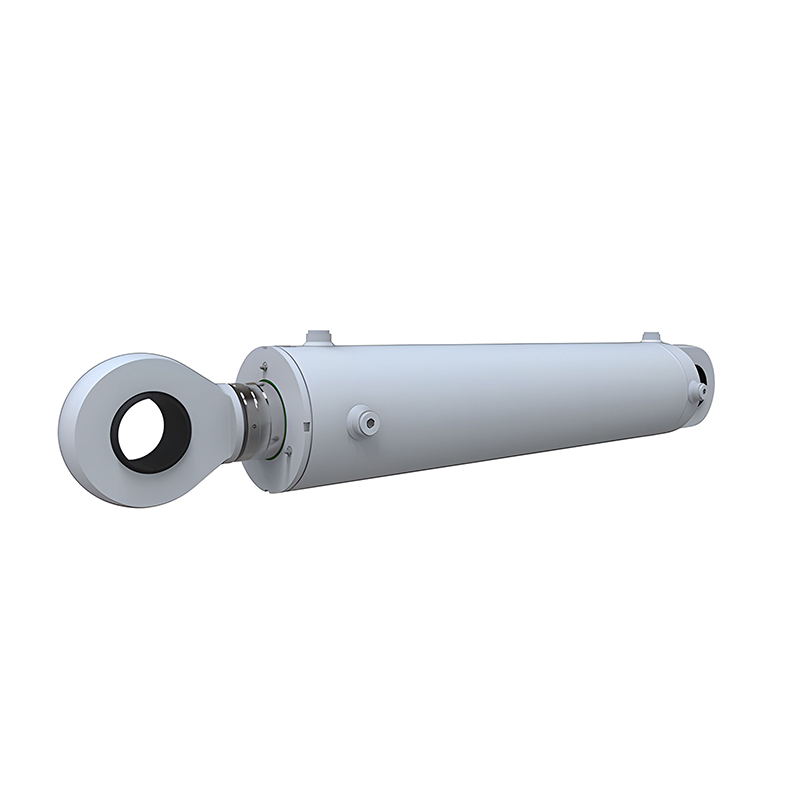

Press cylinders are part of a broader range of hydraulic cylinders for heavy machinery. Builders and plant teams working with high cyclic loads also use our Marine Crane Hydraulic Cylinder, Hydraulic Support Cylinder and Excavator Hydraulic Cylinder lines.

Frequently Asked Questions

What force and pressure range does the Hydraulic Press Cylinder cover?

The standard range covers bores from 100 to 600 mm, strokes from 220 to 1500 mm and working pressures from 16 to 30 MPa. At the top of that envelope the cylinder delivers approximately 8500 kN push and 6360 kN pull. If your press needs a larger bore, longer stroke or higher pressure, we review the design around your frame and pump capacity.

Can you produce press cylinders from customer drawings?

Yes. We develop and produce cylinders according to customer drawings or samples, which is the standard route for press builders with defined machine interfaces. The same line also includes standard cylinder sizes for replacement and maintenance projects.

How do you manage side load under forging conditions?

The press cylinder uses a special guide support design and a copper alloy plunger guide with good wear resistance. Plunger surfaces are quenched and chromium-plated to improve hardness, and the complete guide arrangement is verified for the side-load conditions described in the project information.

What service and warranty support do you provide?

As a Hydraulic Press Cylinder supplier, we warrant each cylinder for one year against defects in material and workmanship under normal use. We respond to reported issues within 24 hours, provide installation and commissioning support, and make replacement or next-order discount arrangements for warranty quality problems.

Which industries use these press cylinders?

Hydraulic press and forging machinery, automotive component plants, machine tool builders, steel recycling equipment, extrusion presses and metal forming lines. Our cylinders are also exported with main machines to the United States, Japan, Russia and other regions.

What fluid and temperature range is supported?

Standard working temperature is -40°C to 100°C. Seal material is selected around the hydraulic fluid, operating temperature and cycle frequency, and the chrome-plated plunger surface protects against corrosive plant conditions. High-temperature and corrosion-resistant versions are part of the custom scope.
